Fluke 810

€ 13.738,-

Request a quote

Fluke 810

Order number: 069133

Print page

€ 13.738,-

All prices are net, per piece, excluding VAT. Subject to changes.

Product summary

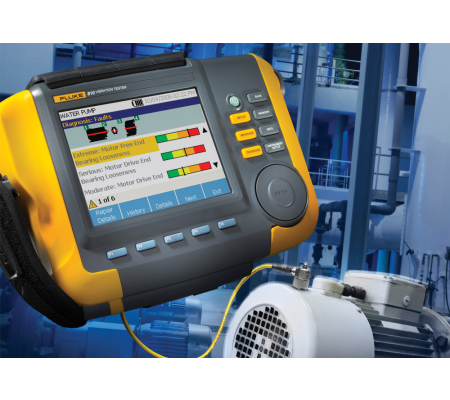

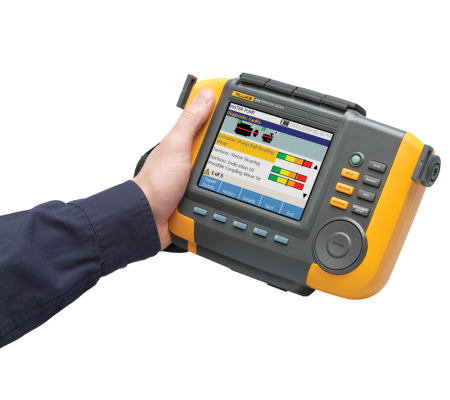

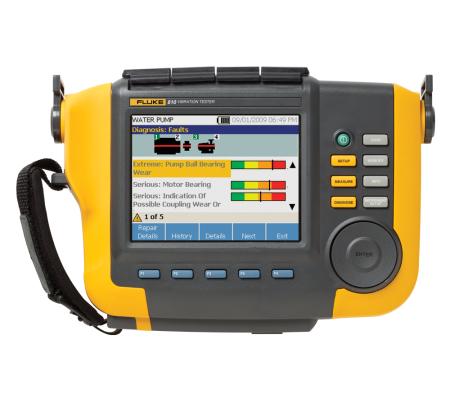

De Fluke 810 trillingsmeter is een uniek testinstrument voor het vaststellen van mechanische problemen. Door de grote database met veel voorkomende testopstellingen en heldere diagnostiek is geen meethistorie of consultant nodig.

Request a quote

Add to comparison

Fabrikant, importeur en distributeur

Service- en kalibratielaboratorium

Cursussen, trainingen en workshops

Product description

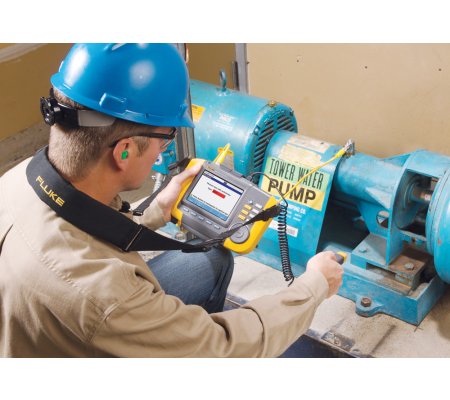

De Fluke 810 is ideaal voor periodiek onderhoud en controleren van reparaties. De unieke diagnosetechnologie helpt u mechanische problemen snel te identificeren en prioriteiten daarvan aan te geven, zodat u de expertise van een trillingsanalist in handen hebt.
Het instrument wordt geleverd met:

Triaxiale versnellingsopnemer, magnetische bevestiging, set met montagepad en kleefmiddel, aansluitkabel met snelkoppeling voor versnellingsopnemer
Laser-snelheidsmeter en opbergtas
Smart-batterijset met kabel en adapters
Schouderriem en verstelbare draagriem
Viewer pc-software
Kabeladapter van mini-USB naar USB
Handleiding Eerste kennismaking, geïllustreerde beknopte handleiding, gebruiksaanwijzingen op cd-rom
Draagkoffer

Nieuwe Firmware release voor Fluke 810

De nieuwste firmware voor de Fluke 810 is meer dan een software update. De krachtige set van nieuwe software verbeteringen kan beschouwd worden als een volgende generatie.

De Update is gratis beschikbaar voor alle huidige Fluke 810 gebruikers en te downloaden via deze link.

Other possibilities

Fluke 805 FC

€ 2.634,-

Info

Vergelijk producten0

Diagnostic specifications
Standard faults	Unbalance, looseness, misalignment and bearing failures
Analysis for	Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Machine rotational speed range	200 rpm to 12000 rpm
Diagnosis details	Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra
Electrical specifications
Ranging	Automatic
A/D converter	4 channel, 24 bit
Usable bandwidth	2 Hz to 20 kHz
Sampling	51,2 Hz
Digital signal processing functions	Automatically configured anti-alias filter, high-pass filter, decimation, overlap-ping, windowing, FFT, and averaging
Sampling rate	2,5 kHz to 50 kHz
Dynamic range	128 dB
Signal to noise ratio	100 dB
FFT resolution	800 lines
Spectral windows	Hanning
Frequency units	Hz, orders, cpm
Amplitude units	in/sec, mm/sec, VdB (US), VdB* (Europe)
Non-volatile memory	SD micro memory card, 2 GB internal + user accessible slot for additional storage
General specifications
Dimensions (HxDxW)	18,56 cm x 7,00 cm x 26,72 cm (7,30 in x 2,76 in x 10,52 in)
Weight (with battery)	1,9 kg (4,2 lb)
Display	¼ VGA, 320 × 240 Color (5,7 inch diagonal) TFT LCD with LED backlight
Input/Output Connections
Triaxial sensor connection	4 pin M12 connector
Single axis sensor connection	BNC connector
Tachometer Connection	Mini DIN 6 pin connector
PC Connection	Mini ‘B’ USB (2,0) connector
Battery
Battery type	Lithium-ion, 14,8 V, 2,55 Ah
Battery charging time	Three hours
Battery discharge time	Eight hours (under normal conditions)
AC adapter
Input voltage	100 Vac to 240 Vac
Input frequency	50/60 Hz
Operating system	WinCE 6,0 Core
Language Support	English, French, German, Italian, Japanese, Portuguese,Simplified Chinese, Spanish
Warranty	Three-years
Environmental
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity	10 % to 95 % RH (non-condensing)
Agency approvals	CHINA RoHS, CSA, CE, C TICK, WEEE
Electromagnetic compatibility	EN 61326-1:2006, EN 61010:1:2001 2nd ed.

Sensor type	Accelerometer
Sensitivity	100 mV/g (± 5 %, 25 °C)
Acceleration range	80 g peak
Amplitude nonlinearity	1%
Frequency response
Z	2 -7,000 Hz ± 3dB
X, Y	2 -5,000 Hz ± 3dB
Power requirement (IEPE)	18 V dc to 30 V dc, 2 mA to 10 mA
Bias output voltage	12 V dc
Grounding	Case grounded
Sensing element design	PZT ceramic / shear
Case material	316L stainless steel
Mounting	10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength)
Output connector	4-Pin, M12
Mating connector	M12 -F4D
Non-volatile memory	TEDS 1451,4 compatible
Vibration limit	500 g peak
Shock limit	5000 g peak
Electromagnetic sensitivity, equivalent g	100 ìg/gauss
Sealing	Hermetic
Temperature range	-50 °C to 120 °C (-58 °F to 248 °F) ± 7 %
Warranty	One-year

Dimensions (DxW)	2,86 cm x 12,19 cm (1,125 in x 4,80 in)
Weight	96 g (3,4 oz) with cable
Power	Powered by 810 Vibration Tester
Detection	Laser Diode Class 2
Range	6,0 to 99,999 rpm
Accuracy
6,0 to 5999,9 rpm	± 0,01 % and ± 1 digit
5999,9 to 99999 rpm	± 0,05 % and ± 1 digit
Resolution	0,1 rpm
Effective range	1 cm to 100 cm (0,4 in to 39,27 in)
Response time	1 second (> 60 rpm)
Controls	Measure on/off transparent button
Interface	6 Pin Mini DIN
